Large Intelligent Automatic Metallographic Cutting Machine Floor Standing

Name: Large Intelligent Automatic Metallographic Cutting Machine Floor Standing
Brand: iqualitrol
Price: 1 USD

Brand Name : iqualitrol

Model Number : iZQ-300F

MOQ : 1 Set

Payment Terms : T/T, Western Union

Supply Ability : 10 Sets per Month

Delivery Time : 10 Working Days

Packaging Details : Plywood Box

Model : IZQ-300F

Cut Capacity : Maximum Cutting Diameter 120mm

X-axis : Automatic Cutting Method, X-axis Stroke 70mm

Speed : Spindle Stepless Speed Regulation 100-3000rpm

Controller : Color Touch Screen PLC Control

Cutting Blade : Cutting Blade 400*32*3.0mm, With Magnetic Separation System

Contact Now

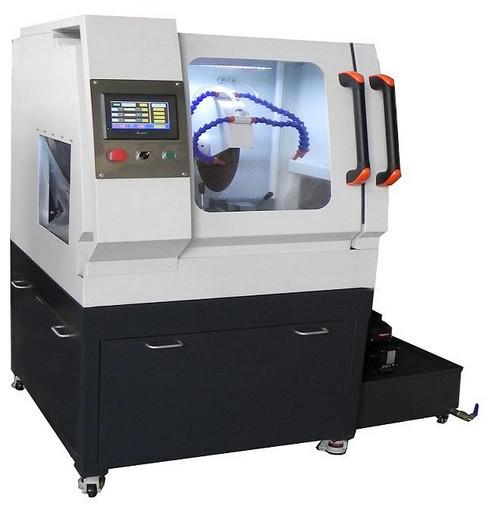

Floor-Standing Large intelligent Automatic Metallographic
Cutting Machine iZQ-300F

Brief Introduction:

The latest iqualitrol Floor-standing type Automatic Metallographic Cutting Machine, with maximum cutting diameter 120mm.

Apply automatic cutting method, X-axis stroke 70mm, spindle stepless speed regulation 100-3000rpm, color touch screen PLC control, X/Y dual-axis positioning cutting, cutting blade 400*32*3.0mm, with magnetic separation system.

Technical Specifications:

Model	iZQ-300F
Spindle Speed	100-3000rpm, stepless speed
X-axis stroke	70mm
X-axis speed	0-100mm, stepless speed
Z-axis stroke	150mm
Z-axis speed	0-200mm
Y-axis stroke	200mm
Y-axis speed	0-200mm, stepless speed
Controller	8” color touch screen PLC control
Max Section	Diameter 120mm for Cylinder specimen
Disc type Section	∅300*100mm
Cutting Mode	Vertical, Horizontal, Stratified cutting
Feed Type	Feed and retreat ratio can be set
Effective feed distance	150+200mm
Completion tracking	Real time digital display
Work Table	650*300mm
Cutting disc	(250-380)(2-3) 32mm
Clamp	Split double layer movable platform
Clamp Table	Stainless Steel
Cutting Speed	1-200mm/min
Speed Adjust	Arbitrary adjustment
Reset Mode	Auto Reset
Cooling System	Automatic water Cooling (4 channels)
Water Tank	75L
Power	4KW (ABB Motor)
Machine Type	Floor-standing type
Power Supply	AC380V/50hz/3ph
Net Weight	500KG
