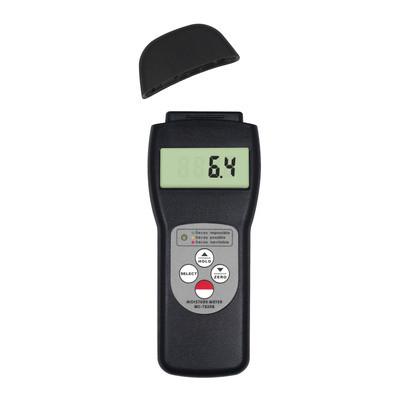

Moisture Meter MC-7825S

Brand Name : iqualitrol

Model Number : MC-7825S

Certification : CE

Place of Origin : DONGGUAN

MOQ : 1 Set

Price : Negotiable

Payment Terms : T/T

Supply Ability : 100 sets per month

Delivery Time : 10 work days

Packaging Details : Carton box

Measurement Codes : 20

Range : Moisture 0~70%

Accurary : Moisture ±(0.5%n+1)

Resolution : 0.1

Operating Conditions : Humidity <90%RH

Contact Now

Spec:Applicable of wood fiber materials, wooden articles, Chinese traditional medicine, tobacco, cotton paper, building, soil and other fibre materials.

Features

* Measuring principles: Search type.

* Two presentations, digital display and color coded LED indication.

* Use USB/RS-232 data output to connect with PC.

* Provide Bluetooth data output choice.

Search Type Code

Moisture Meter MC-7825S

Specifications

Model

MC-

7825S

MC-

7825P

MC-

7825PS

MC-

7828P

MC-

7806

Sensor Type Search ----- -----
Pin -----
Measurement Codes 20 10 30 10 Fixed
Range Moisture 0~70% 0~80% 0~50%
Temperature ----- -10~60ºC
Accurary Moisture ±(0.5%n+1) ±(0.5%n+1.5)
Temperature ----- ±0.8ºC
Resolution 0.1
Display LCD
LED Indicator Green LED represents a safe,air-dry state -----
Yellow LED represents a borderline state -----
Red LED represents a damp state -----
Operating Conditions Temperature 0~50ºC
Humidity <90%RH <85%RH
Power Supply 4x1.5V AAA(UM-4)Battery 4x1.5V AA(UM-3)
Dimensions Main Unit 165x62x26 mm 165x62x26mm 150x65x30mm 178x68x39mm

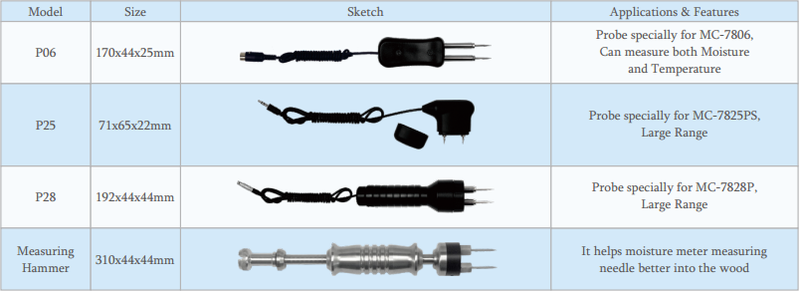

Probe ----- 71x65x22mm 192x44x44mm 170x44x25mm
Weight 119g 175g 324g 334g
Standard Accessories Main Unit,Operation Manual
----- ----- Probe(P25) Probe(P28) Probe(P06)
Carrying Case(B04) Carrying Case(B02)
----- Measuring Hammer -----
Optional Accessories RS-232C Data Cable with Software,Bluetooth Data Adapter with Software -----

Moisture Meter MC-7825S
