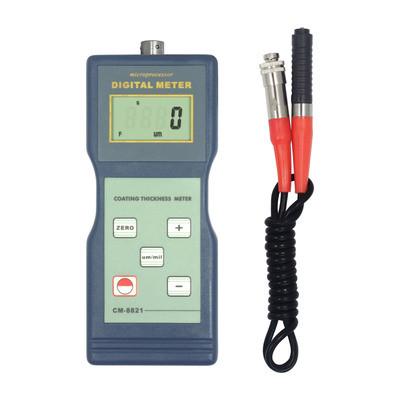

Coating Thickness Gauge CM-8821

Name: Coating Thickness Gauge CM8821
Brand: iqualitrol
Price: 1 USD

Brand Name : iqualitrol

Model Number : CM-8821

Certification : CE

Place of Origin : DONGGUAN

MOQ : 1 Set

Price : Negotiable

Payment Terms : T/T

Supply Ability : 100 Sets per month

Delivery Time : 10 work days

Packaging Details : Carton box

Range : 0~1000µm/0~40mil

Resolution : 0.1µm/1µm

Accuracy : ±1~3%n or ±2.5µm

Min.Radius Workpiece : F Type:convex 1.5mm/concave 25mm/ NF Type:convex 3mm/concave 50mm

Metric/Imperial : Convertible

Operating Conditions : Temperature:0~50ºC/ Humidity:<80%RH

Contact Now

Spec:The F probes measure the thickness of non-magnetic materials on magnetic materials.

Features

* Measuring Principle: magnetic induction (F).

* Two measurement mode: Single and Continuous(Notice:Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.)

* Metric/imperial system selectable.

* Manual or automatic shut down.

* Automatic memory of calibration value,and automatic recognize the substrate.

* Operation process have buzzing reminder,while no buzzing in continuous mode.

Principle

Principles	Applications	Examples
F Type Magnetic Induction (Iron Base)	Measure the thickness of non-magnetic materials on magnetic materials	Galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper etc

Specifications

Principle	F Magnetic Induction
Range	0~1000µm/0~40mil
Resolution	0.1µm/1µm
Accuracy	±1~3%n or ±2.5µm
Min.Radius Workpiece	F Type:convex 1.5mm/concave 25mm
Min.Radius Workpiece	NF Type:convex 3mm/concave 50mm
Min.Measuring Area	6mm
Min.Sample Thickness	0.3mm
Metric/Imperial	Convertible
Battery Indicator	Low Battery Indicator
Automatic Power Off	√
Operating Conditions	Temperature:0~50ºC
Operating Conditions	Humidity:<80%RH
Power Supply	4x1.5V AA (UM-3)Battery
Dimensions	161x69x32mm
Weight	210g(Not Including Batteries)

Accessories

Standard Accessories	Main Unit
	Probe (F Type)
	Calibration Base (F)
	Calibration Foils (1 set, 5 pieces)
	Carrying Case (B04)
	Operation Manual
