Digital Force Gauge FM-204-50K

DongGuan Q1-Test Equipment Co., Ltd.
Contact Now

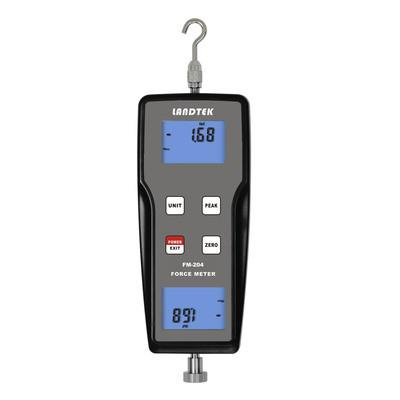

Digital Force Gauge FM-204-50K

Brand Name : iqualitrol

Model Number : FM-204-50K

Certification : CE

Place of Origin : DONGGUAN

MOQ : 1 Set

Price : Negotiable

Payment Terms : T/T

Supply Ability : 100 sets per month

Delivery Time : 10 work days

Packaging Details : Carton box

Force Range : ±50 kgf /±490 N/ ±110 Lbf

Resolution : 0.01 kgf/0.1 N /0.1 Lbf

Accuracy : ±0.5%FS±1Digit

Unit : kgf,gf,N,Lbf

Measurement State : Peak Value Measurement,Real Time Measurement

Display : Dis2 Reversed 4Digit LCDplay

Contact Now

Spec:The digital force gauge is a kind of simple and convenient functional instrument for high-accuracy push force and pull force test.It is widely used in electronics,building hardware,textile,auto parts,

Features

* High accuracy and high resolution.

* Digital display with no guessing or errors.

* With 4 measurement unit for selection and conversion, N, kg, lb, g.

* With peak value hold function.

* With 10 minutes auto power off and manual power off.

* Power can be supplied by either alkaline battery or 6V DC power.

Specifications

Force Range ±50 kgf
±490 N
±110 Lbf
Resolution 0.01 kgf
0.1 N
0.1 Lbf
Accuracy ±0.5%FS±1Digit
Unit kgf,gf,N,Lbf
Measurement State Peak Value Measurement,Real Time Measurement
Display 2 Reversed 4Digit LCD
Power Off 10 Minutes Auto Power Off, Manual Power Off
Backlight Blue Backlight
Safe Load 150%FS(Buzzer Alarm Over 110%FS)
Power Supply 2X1.5 AA(UM-3)Battery or 6VDC Power Supply
Operating Temperature:0~40ºC
Conditions Humidity:<80%
Surrounding No Vibration Source or Corrosive Medium Around
Weight 390g
Size 211x80x36mm

Accessories

Standard Accessories Digital Force Gauge
Pulling Hook
Flat Tip
Cone Tip
V-shaped Groove Tip
V-shaped Wedge Tip
Lengthening Connection Rod Screw Rod
Cap Nut
Manual
Carrying Case
Optional Accessories Power Adapter

Specifications And Application Of Accessories

Digital Force Gauge FM-204-50K
