Brand Name : iqualitrol
Model Number : FM-207-2K
Certification : CE
Place of Origin : DONGGUAN
MOQ : 1 set
Price : Negotiable
Payment Terms : T/T
Supply Ability : 100 sets per month
Delivery Time : 10 work days
Packaging Details : Carton box
Power Supply 2 x 1.5 AA( UM-3 ) Battery or 6VDC Power Supply : ±2 kgf /±2000 gf /±19.6 N/ ±4.4 Lbf
Accuracy : ±0.2% FS ±1 Digit
Measurement State : Peak Value Measurement, Real Time Measurement
Display : 2 Reversed 4 Digit LCD
Power Off : 10 Minutes Auto Power Off, Manual Power Off
Backlight : Blue Backlight
Spec:The digital force gauge is a kind of simple and convenient functional instrument for high-accuracy push force and pull force test.It is widely used in electronics,building hardware,textile,auto parts,
Features
* High accuracy and high resolution.
* Digital display with no guessing or errors.
* With 4 measurement unit for selection and conversion, N, kg, lb, g.
* With peak value hold function.
* With data memory function, can memorize 99 groups of data.
* With 10 minutes auto power off and manual power off.
* Power can be supplied by either alkaline battery or 6V DC power.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
Specifications
Force Range | ±2 kgf |
±2000 gf | |
±19.6 N | |
±4.4 Lbf | |
Resolution | 0.001 kgf |
1 gf | |
0.01 N | |
0.001 Lbf | |
Accuracy | ±0.2% FS ±1 Digit |
Unit | Kgf, gf, N, Lbf |
Measurement State | Peak Value Measurement, Real Time Measurement |
Display | 2 Reversed 4 Digit LCD |
Power Off | 10 Minutes Auto Power Off, Manual Power Off |
Backlight | Blue Backlight |
Safe Load | 150% FS ( Buzzer Alarm Over 110% FS ) |
Data Output | USB, Bluetooth |
Power Supply | 2 x 1.5 AA( UM-3 ) Battery or 6VDC Power Supply |
Operating Conditions | Temperature: 0 ~ 40°C |
Humidity: <80% | |
Surrounding | No Vibration Source or Corrosive Medium Around |
Weight | 390 g |
Size | 211 x 80 x 36 mm |
Accessories
Standard Accessories | Digital Force Gauge | |
Pulling Hook | ||
Flat Tip | ||
Cone Tip | ||
V-shaped Groove Tip | ||
V-shaped Wedge Tip | ||
Lengthening Connection Rod | Screw Rod | |
Cap Nut | ||
Manual | ||
Carrying Case | ||
Optional Accessories | CD | |
USB Data Cable | ||
Bluetooth Adapter | ||
Power Adapter | ||
Force Gauge Stand |
Specifications And Application Of Accessories
![]() |

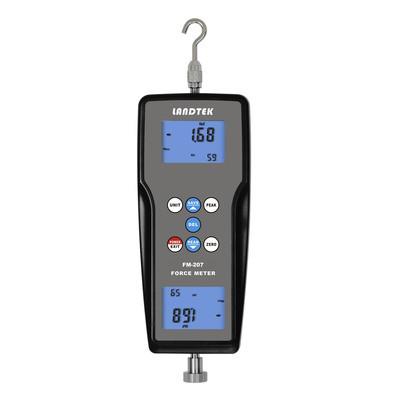

Digital Force Gauge FM-207-2K Images |
