Spec:The F probes measure the thickness of non-magnetic materials on magnetic materials. The N probes measure the thickness of non-conductive coatings on non-magnetic metals.
Features
* Two measuring methods: magnetic induction (F) and eddy current (N)
* Two measurement mode: Single and Continuous(Notice:Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.)
* Metric/imperial system selectable.
* Manual or automatic shut down.
* Automatic memory of calibration value,and automatic recognize the substrate.
* Operation process have buzzing reminder,while no buzzing in continuous mode.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
* Integral Type suitable for single-hand operation, large probe with large contact surface have better stability, users can get continuous, good repetitive and precise measurements.
Principle
| Principles |
Applications |
Examples |
F Type
Magnetic Induction
(Iron Base) |
Measure the thickness of non-magnetic materials on magnetic materials |
Galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper etc |
NF Type
Eddy Current
(Aluminium Base) |
Measure the thickness of non-conductive coatings on non-magnetic metals |
Anodizing, varnish, paint, enamel, plastic coatings, powder, etc. Applied to aluminum, brass, non-magnetic stainless steel, etc |
Specifications
| Model |
Integral |
CM-8829FN |
CM-8829N |
CM-8829F |
-------- |
| Separate |
CM-8829FNS |
CM-8829NS |
CM-8829FS |
CM-8829H |
| Principle |
F Magnetic Induction |
√ |
-------- |
√ |
√ |
| NF Type Eddy Current |
√ |
√ |
-------- |
√ |
| Range |
0~1250µm/0~50mil |
0~12mm/0~480mil |
| Resolution |
0.1µm/1µm |
0.01mm/0.1mm |
| Accuracy |
±1~3%n or ±2.5µm |
±1~3%or±0.2mm |
| Min.Radius Workpiece |
F Type:convex 1.5mm/concave 25mm
NF Type:convex 3mm/concave 50mm
|
convex 20mm/concave 50mm |
| Min.Measuring Area |
6mm |
16mm |
| Min.Sample Thickness |
0.3mm |
0.3mm |
| Metric/Imperial |
Convertible |
| Battery Indicator |
Low Battery Indicator |
| Automatic Power Off |
√ |
| Operating Conditions |
Tempersture |
0~50ºC |
| Humidity |
<80%RH |
| Power Supply |
4x1.5V AAA(UM-4)Battery |
| Dimensions |
126x65x27mm |
| Weight(Not Including Batteries) |
115g |
210g |
Product Tags:
|
|

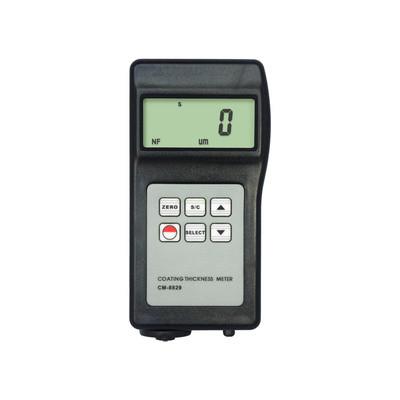

Coating Thickness Gauge CM-8829 Images
|
