Spec: Widely used in Floor maintenance, Surface cleaning quality control, Stone and tile gloss measurement, Checking printed matter, Quality control of paint and ink, Polished metal surface, measurement
Features
* In accordance with international standard ASTMD523, ASTMD1455, ASTMC346, ASTMC584, ASTMD2457, DIN ENISO2813, DIN67530, ENISO7668, JISZ8741, MFT30064, TAPPIT480, GB9754, GB/T13891, GB7706 and GB8807. Its technical parameters conform with JJG696-2002.
* Accurate measurement, good repetitveness.
* Small in size, easy to carry.
* Auto calibration.
* Intelligent design, rapid measurement.
* Able to store 56 groups of measurements.
* Can display gloss value of 20°, 60°, 85° at the same time.
* Built-in lithium ion rechargeable battery.
* Backlight display, suitable for low light environment.
* Use USB data output to connect with PC.
* Provide Bluetooth data output choice.
Material And Angle Selection Recommended
* 20°: High gloss paint, printing ink, plastics, paper and other materials.
* 60°: Middle gloss paint, printing ink, plastics, ceramics, marble and other materials.
* 85°: Low gloss paint, camouflage coatings materials.
Specifications
| Display |
4 Digits Backlit LCD |
| Measuring Angle |
20º/60º/85º |
| Range |
0.1~200 Gloss Units |
| Gloss Units |
GU |
| Accuracy |
±1.0GU |
| Resoltuion |
0.1 |
| Repeatability |
±0.5GU |
| Measuring Area |
7x14mm(Ellipse) |
| Data Memorized |
56 Groups |
| Operating Conditions |
Temp:0~40ºC Humidity:<85%RH |
| Power Supply |
3.7V Lithium Ion Rechargeable Battery |
| Dimensions |
140x45x75mm |
| Weight |
310g(Including Batteries) |
| Stabdard Accessories |
Main Unit |
| Holder with Calibration Standard |
| AC Adapter |
| Optical Cleaning Cloth |
| Carrying Case |
| Operation Manual |
Product Tags:
|
|

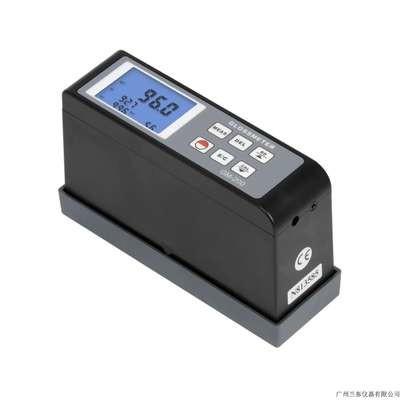

20°/60°/85°Gloss Meter GM-200 Images
|
